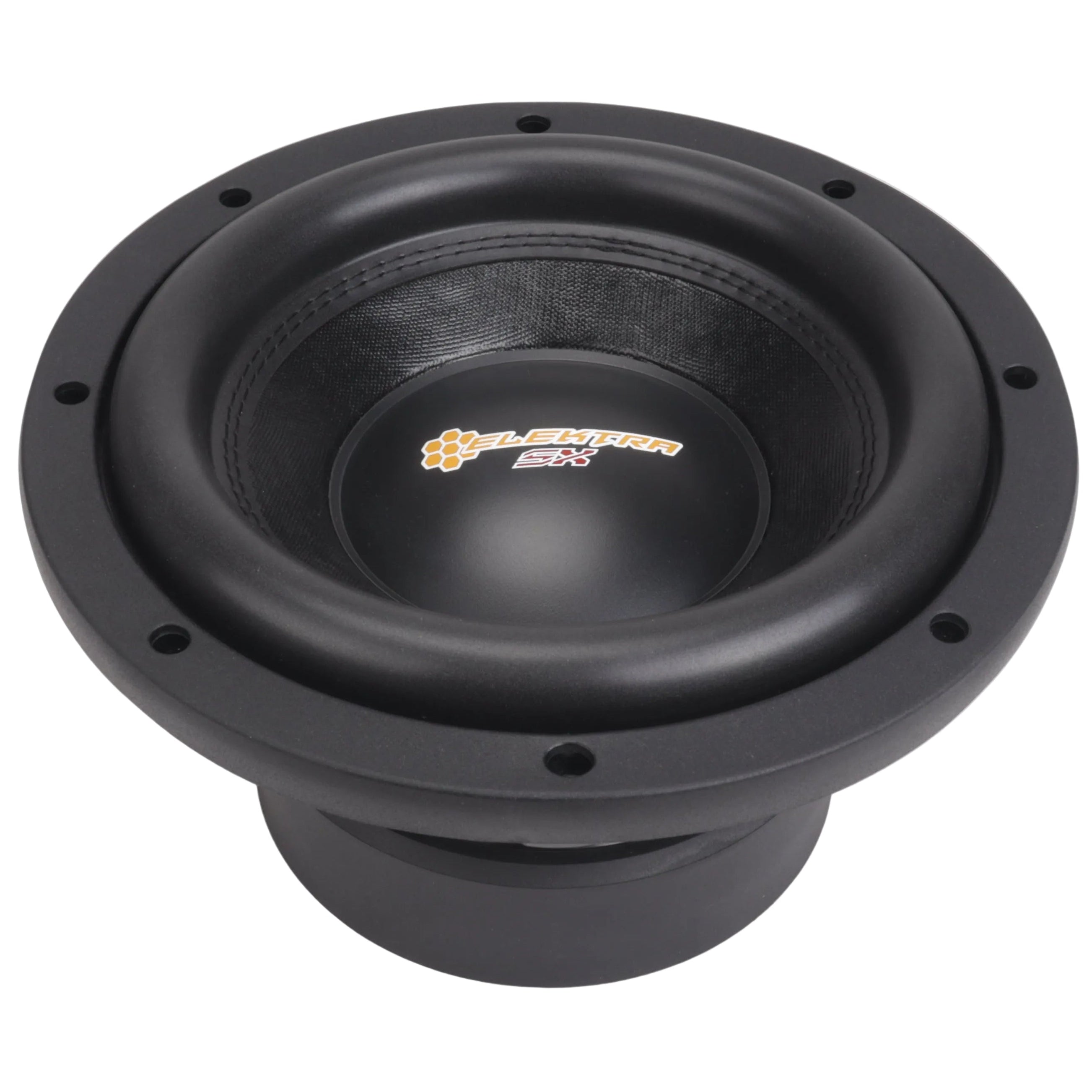

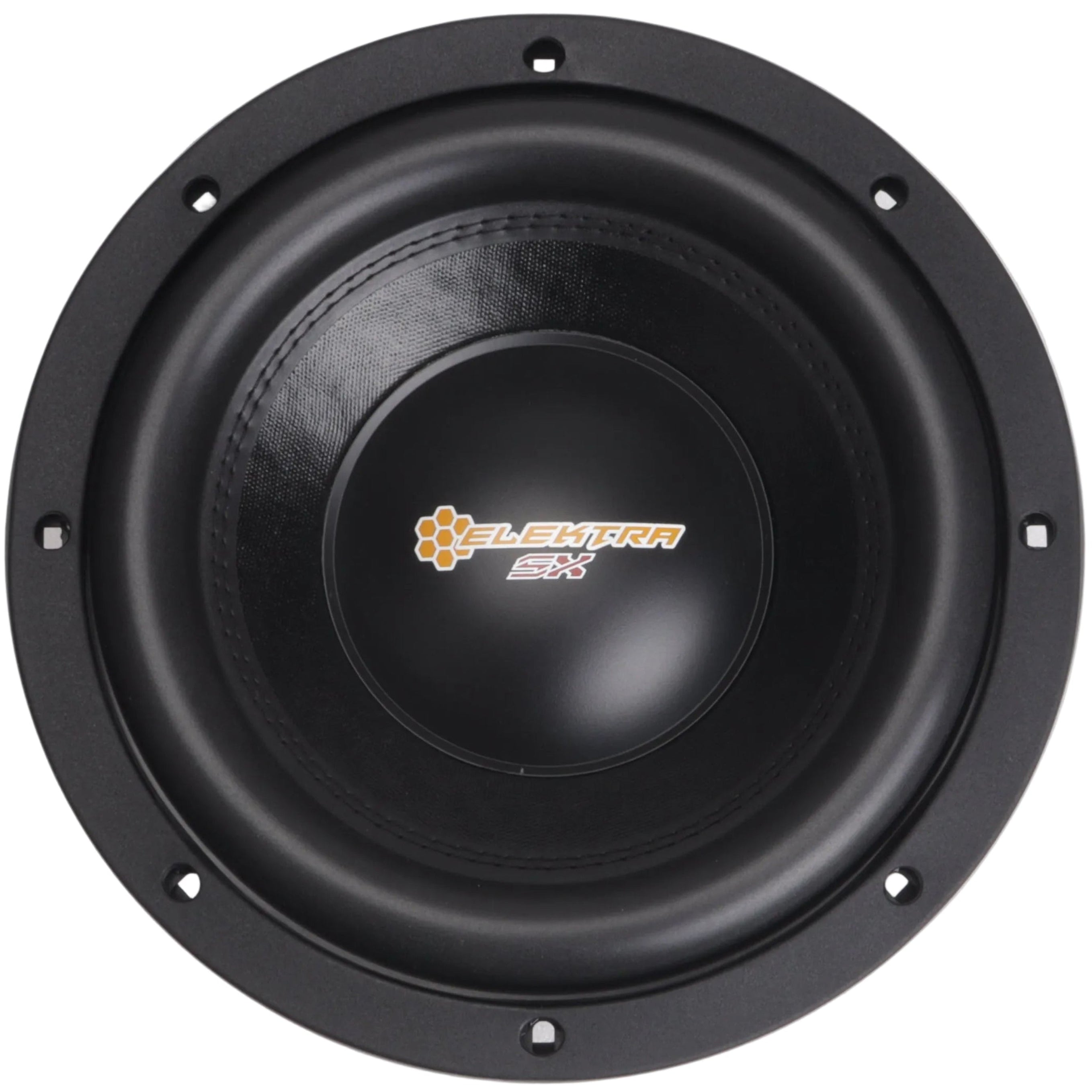

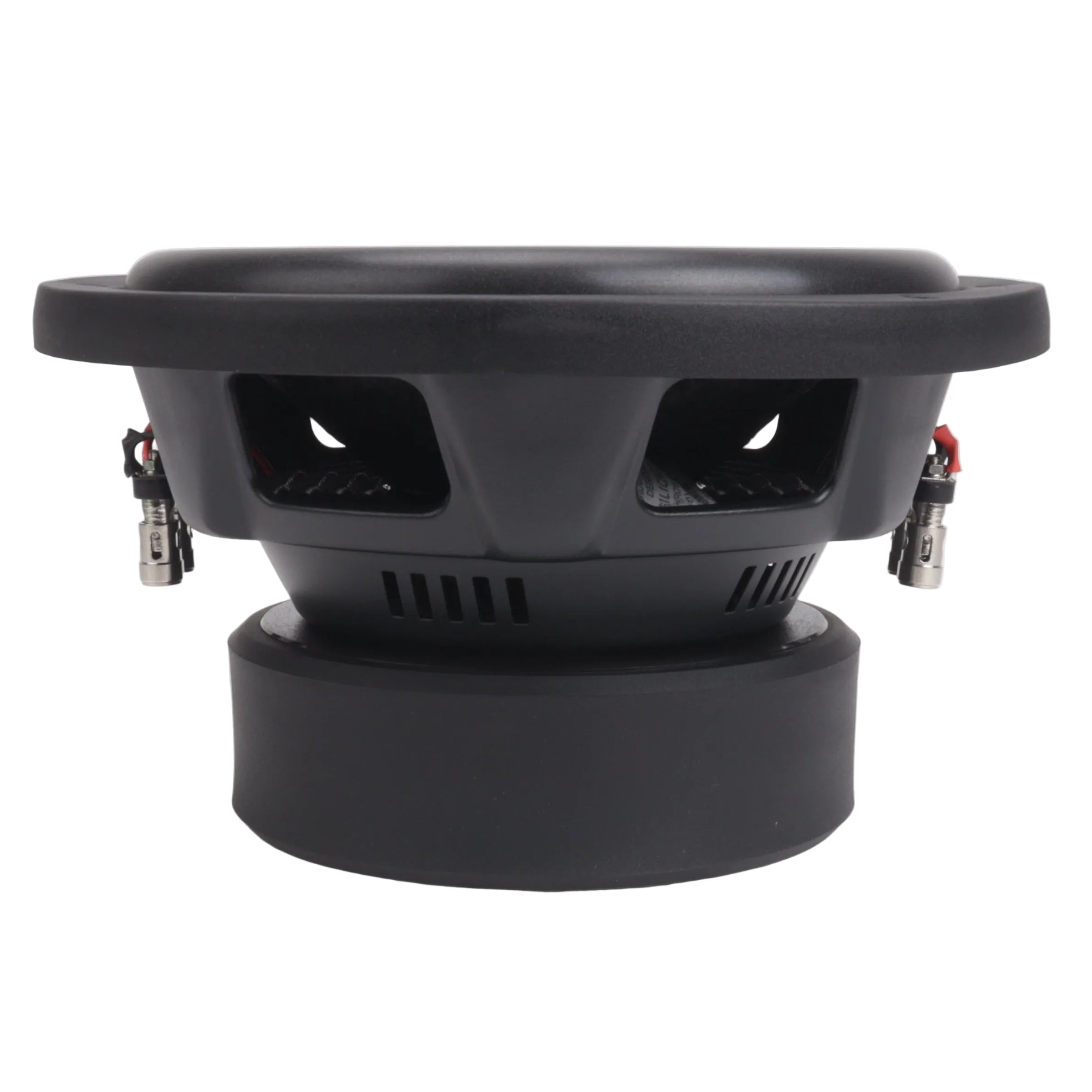

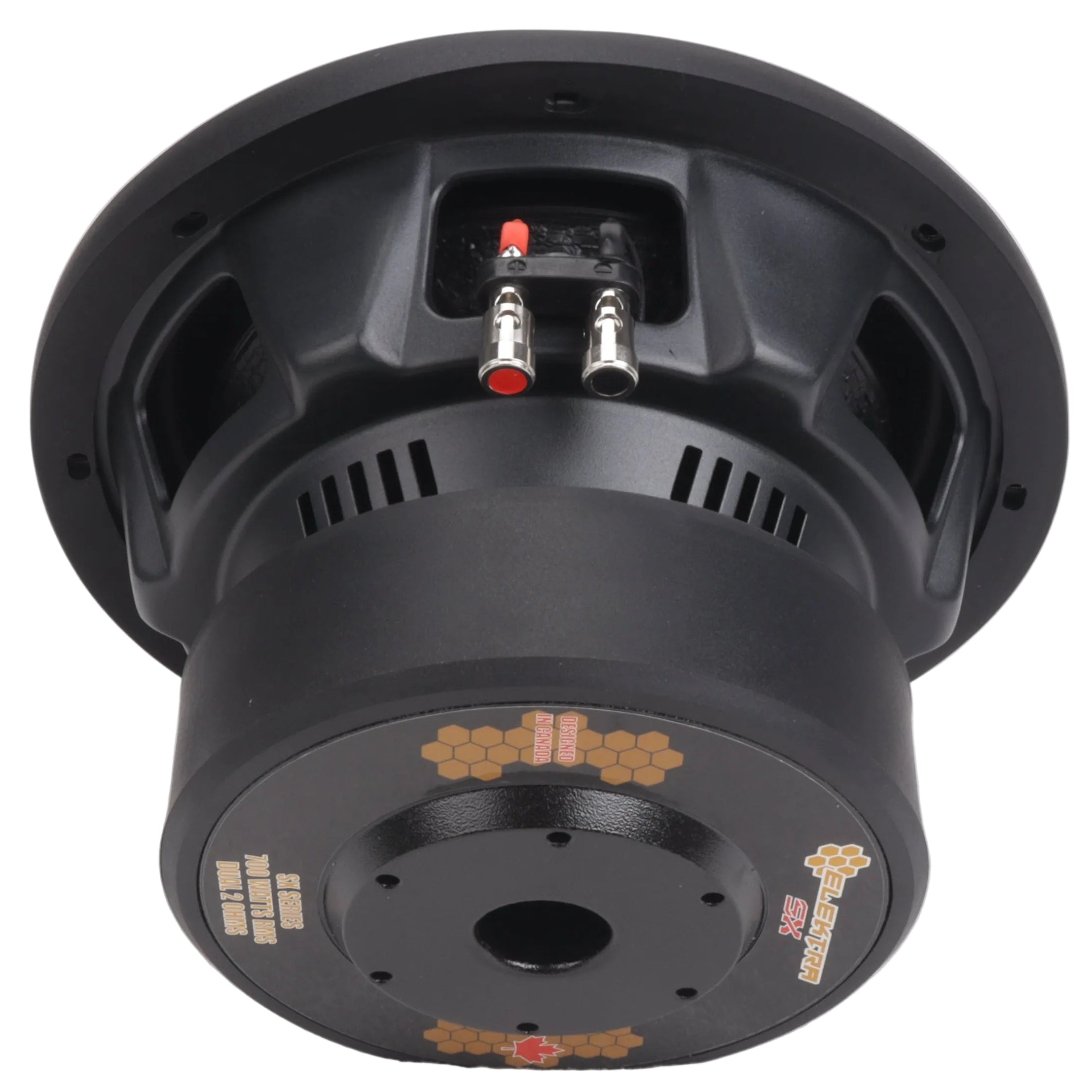

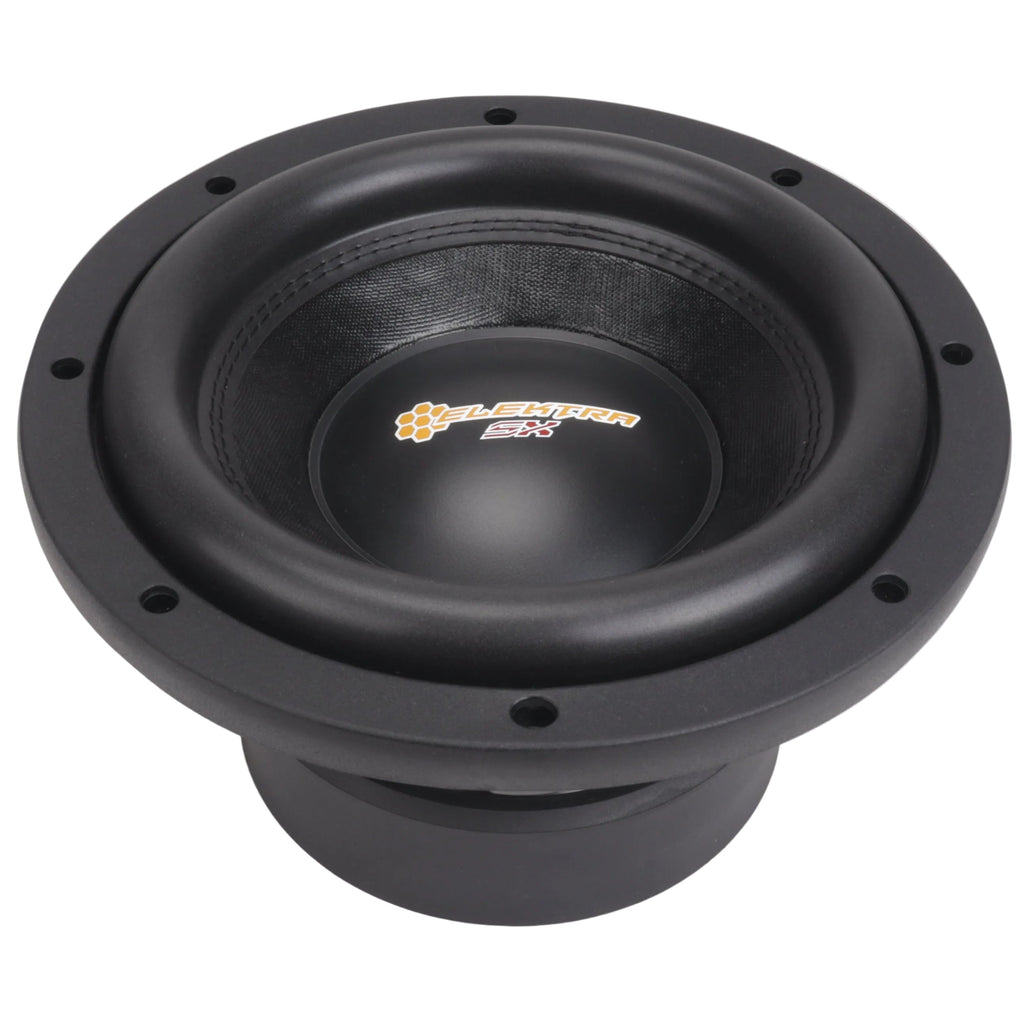

Elektra SX10 10" 700W RMS Subwoofers
Feel the Music. Command the Road. Introducing the All-New Elektra Mobile Audio SX10” Subwoofer.
Forget what you know about 10-inch subwoofers. The all-new Elektra Mobile Audio SX10” is engineered for the audio enthusiast who refuses to compromise between musical accuracy and ground-pounding output. We’ve redesigned the SX line from the ground up to deliver deeper, louder, and cleaner bass that you don't just hear—you feel in your chest.
Whether you're chasing the perfect sound quality (SQ) setup or just want to rattle the rearview mirror, the SX10” is built to over-deliver.
Why the SX10” Dominates the Competition
Massive 3” Voice Coil for Elite Power Handling At the heart of the SX10” is a heavy-duty 3-inch high-temperature voice coil. Why does that matter? Heat is the enemy of bass. By stepping up to a 3-inch coil, we’ve drastically increased the subwoofer's thermal capacity. This means it can comfortably handle massive amounts of power for extended periods without breaking a sweat, ensuring your bass stays crisp and distortion-free even when you push the volume to the limit.
Conservatively Rated at 700W RMS We don't play games with inflated "peak" power ratings. The SX10” thrives on a true 700 Watts RMS of continuous power. It’s hungry for wattage and translates every drop of it into raw, unadulterated acoustic energy.
Pressed Paper Cone & Dustcap for Musical Warmth There’s a reason audiophiles still swear by paper. The SX10” features a highly rigid, ultra-lightweight pressed paper cone and matching dustcap. This classic material choice provides the perfect strength-to-weight ratio, allowing for lightning-fast transient response. The result? Bass that is incredibly punchy, incredibly warm, and naturally resonant. From the rapid-fire double kick drums of rock to the sustained, low-frequency drops of hip-hop, the SX10” reproduces every note with stunning accuracy.
| T/S Parameters | SX10 |
| Fs (Hz) | 35.178 |
| Qms | 5.545 |
| Qes | 0.737 |
| Qts | 0.651 |
| Vas (Litres) | 13.003 |
| Xmax (mm) | 9 |
| SPL 1W/m (db) | 81.0 |
| Continuous Power (W) | 700 |
| Re (Ω) | 4.0 |
| Le (mH) | 1.22 |
| BL | 17.088 |
| Physical Specifications | SX10 |
| Overall Diameter (inches) | 10.75 |
| Mounting Diameter (inches) | 9.125 |
| Magnet Diameter (inches) | 7.125 |
| Total Depth (inches) | 6.125 |
| Mounting Depth (inches) | 5.5 |
| Displacement | 0.03 ft3 |
| Cone Material | Paper |
| Dust Cap | Paper |
| Frequency Range (Hz) | 28-100 |
| Voice Coil Diameter | 3” |
| Net Weight (lbs) | 11 |
